薄膜热敏电阻

R25(Ω):

用途:广泛应用于温度测试、温度控制及温度补偿等场合。

描述

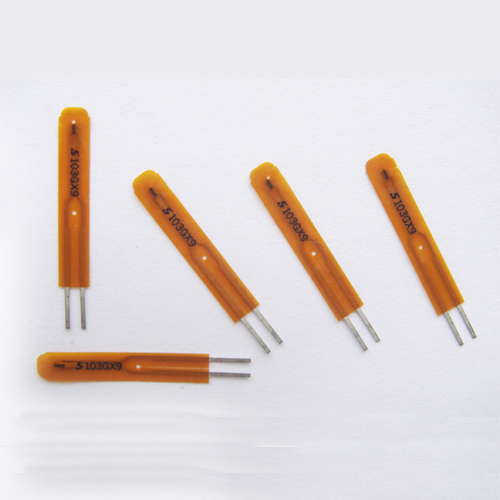

    薄膜热敏电阻

    采用全新的硬膜工艺生产,其结构新颖、可靠性高、一致性好,被广泛应用于温度测试、温度控制及温度补偿等场合。

    *需索取相关资料,请到论坛 http://bbs.ntc-world.com/forum.php?mod=forumdisplay&fid=30   寻查,谢谢!

    NTC THERMISTORSPECIFICATIONS

    1)    Scope

    This specification defines ratings, dimension, insulation, climatic test and mechanical characteristics for JT type thermistor.
    2) Part No.:  DAE-JT103F-025

    3) Rating

      3-1) Rated zero-power resistance  : R25 : 10KΩ ± 1% ( at 25 )

      3-2) B value : B25/85: 3,435K ± 1%

           * The B value is calculated using the zero-power resistance values measured at 25 and 85.

      3-3) Dissipation factor                 : Approx. 0.7 mW/ ( in air )

      3-4) Thermal time constant            : Approx. 5.0 S ( in air )

      3-5) Maximum power rating            : 2.5 mW ( at 25 )

      3-6) Category temperature range       : -40 ~ 90

    4) Insulation resistance

        Insulation resistance shall be more than 100MΩ which is measured at DC 100V between film area and terminals.

     5) Climatic test

      5-1) Dry heat

           After the test samples were exposed in air at 90 ± 1 for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ± 1%  of the initial value.

      5-2) Damp heat

            After the test samples were exposed in the humidity of 95% at 40 ± 2 for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ± 1% of the initial value.

      5-3) Cold

           After the test samples were exposed in air at  -30 ± 1 for 1,000 hours, the change ratio of the rated zero-power resistance shall be within  ± 1% of the initial value.

      5-4) Loading

           After DC 1mA current was applied to the test samples in the temperature of 40 ± 2 and the humidity of 95% for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ± 1% of the initial value.

      5-5) Change of temperature

           One cycle of the change of temperature shall be carried out in the order of the following conditions.

    l      Room ambient temperature ( Initial value ) at -25 ± 3 for 30 minutes.

    l      Room ambient temperature for 3 minutes at 90 ± 2 for 30 minutes

    l      Room ambient temperature for 3 minutes after the 100 cycles of this process, the change ratio of the rated zero-power resistance shall be within ± 1% of the initial value.

     6) Mechanical characteristics

      6-1) Resistance to soldering heat

           The terminals shall be dipped into a soldering bath having a temperature of 260 ± 5 to a point 2.0mm from the body and then be held there for 5 ± 1s, the change ratio of the rated zero-power resistance shall be within  ± 1% of the initial value.

      6-2) Solderability

           After dipping the terminal to a depth in a soldering bath of 235  ± 5 for  ± 0.5s.  Approximately 90% of terminals should be covered with solder uniformly.

      6-3) Free fall:

           After three times fall to a maple board from 0.75 meter high, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within  ± 1% of the initial value.

      6-4) Robustness of termination

           After 1N loading weight for 10  ± 1S was applied to the wise terminations, there shall be no visible damage and the change ratio of the rated zero-power resistance shall be within  ± 1% of the initial value.

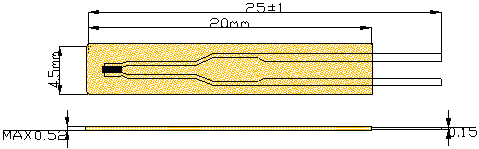

     7) Dimensions ( mm )




    Resistance Table

      MODEL : 10KOhm
      B(25/85) : 3435˚K           UNIT :

    TEMP STD TEMP STD TEMP STD TEMP STD
    -40 205.9 6 21.41 52 3.842 98 1.004
    -39 194.1 7 20.52 53 3.719 99 0.979
    -38 183.0 8 19.67 54 3.601 100 0.954
    -37 172.6 9 18.86 55 3.488 101 0.931
    -36 163.0 10 18.09 56 3.379 102 0.908
    -35 153.9 11 17.35 57 3.274 103 0.886
    -34 145.4 12 16.65 58 3.172 104 0.864
    -33 137.4 13 15.99 59 3.075 105 0.843
    -32 130.0 14 15.35 60 2.981 106 0.823
    -31 123.0 15 14.74 61 2.890 107 0.804
    -30 116.4 16 14.16 62 2.803 108 0.784
    -29 110.2 17 13.61 63 2.719 109 0.766
    -28 104.4 18 13.09 64 2.638 110 0.748
    -27 98.96 19 12.58 65 2.559 111 0.730
    -26 93.84 20 12.10 66 2.484 112 0.713
    -25 89.02 21 11.64 67 2.411 113 0.697
    -24 87.31 22 11.20 68 2.341 114 0.681
    -23 82.83 23 10.78 69 2.273 115 0.665
    -22 78.61 24 10.38 70 2.207 116 0.650
    -21 74.63 25 10.00 71 2.144 117 0.635
    -20 70.89 26 9.628 72 2.083 118 0.621
    -19 67.36 27 9.271 73 2.024 119 0.607
    -18 64.03 28 8.931 74 1.967 120 0.593
    -17 60.90 29 8.604 75 1.912 121 0.580
    -16 57.93 30 8.292 76 1.858 122 0.567
    -15 55.14 31 7.993 77 1.807 123 0.555
    -14, , 52.49 32 7.707 78 1.757 124 0.543
    -13 50.00 33 7.433 79 1.709 125 0.531
    -12 47.64 34 7.170 80 1.662
    -11 45.41 35 6.918 81 1.617
    -10 43.29 36 6.677 82 1.574
    -9 41.30 37 6.445 83 1.532
    -8 39.40 38 6.223 84 1.491
    -7 37.61 39 6.010 85 1.451
    -6 35.91 40 5.805 86 1.373
    -5 34.30 41 5.609 87 1.337
    -4 32.78 42 5.420 88 1.302
    -3 31.33 43 5.239 89 1.267
    -2 29.96 44 5.065 90 1.234
    -1 28.65 45 4.898 91 1.202
    0 27.41 46 4.738 92 1.171
    1 26.62 47 4.583 93 1.141
    2 25.47 48 4.435 94 1.112
    3 24.38 49 4.292 95 1.083
    4 23.34 50 4.155 96 1.056
    5 22.35 51 3.969 97 1.029
